	Your Location： Home > Product > Voltage Sensor Style > F Series

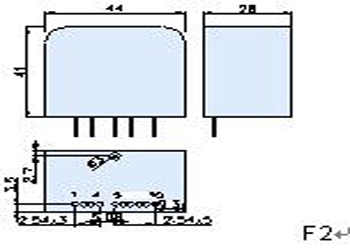

            HEC-F2 Series





                Publish Time：2012/7/25   |    Click：913













      Electrical characteristics ：
      Type
      HEC75mV…1000V-F2
      Rated Voltage
      75mV…1000V
      Output Voltage
      ±5V or 0-20mA/4-20mA output current
      Accuracy
      ±0.2%
      Input Frequent Response
      0-20KHz
      Offset Voltage
      ＜10mV
      Temperature Drift
      0.02%/ ℃
      Response Time
      ＜ 1ms
      Power Supply
      ± 12V （± 5% ）
      Current Consumption
      ±10mA
      Isolation
      2.5KV  DC
      Operating Temperature Range

                                                                0 ℃ ～ +50 ℃
      Storage Temperature Range

                                                             -10 ℃ ～ +70 ℃
